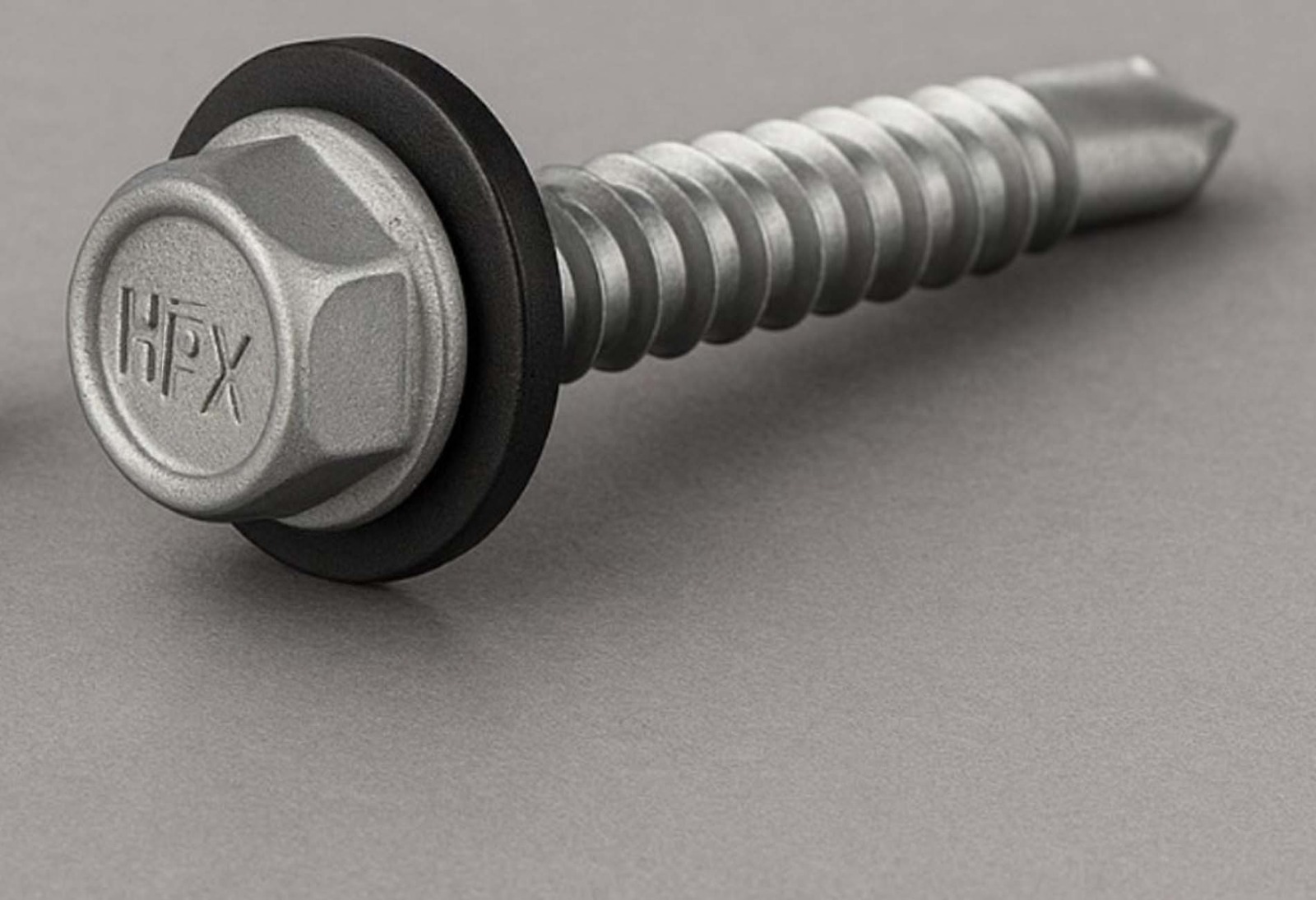

HPX Self-Drilling Screws
Engineered for superior performance and durability in every twist.
Material:
Hardened Carbon Steel (SAE 1022, 15B25)
Surface Treatment:
Ruspert / XYLAN (700-1200 hrs Salt Spray Tested)
Standards:
DIN 7504-K (German Standard)
Head Type:
Indented Hex Flange with EPDM Washer
Product Variants
HPX Bullet
Hexagonal flange type self drilling screw for crest and valley fixing
Specification:
➜ Material: SAE 1022, 15B25
➜ Diameter: M4–M6
➜ Pointer tip: Point no. 3 or 4
➜ Drill capacity: 1.75–5.0 mm
➜ Surface treatment: Yellow Zinc coated, Nickle plated, Ruspert/XYLAN, Zn–AL flake coated, DACROMET.
➜ Head style: Indented Hex flange
➜ Packing: Standard packing in reusable food-grade PET containers.
➜ Salt Spray Test: Dacromet as per ASTM B-117/ISO 9227 of 1000 hrs + DIN 50018 (0.2L) 15 Cycles
➜ Standard: DIN 7504–K
➜ Manufacturing as per IS 18476:2023
Available Sizes:
| Length | M4.0 | M5.5 | M6.0 |
|---|---|---|---|
| 20 | 10–16*20 | 12–14*20 | 14–16*20 |
| 25 | 10–16*25 | 12–14*25 | 14–14*25 |
| 40 | 12–14*35 | 14–14*35 | |
| 50 | 12–14*45 | 14–14*45 | |
| 55 | 12–14*55 | 14–14*55 | |
| 65 | 12–14*65 | 14–14*65 | |
| 85 | 12–14*75 |
HPX AluGrip
Hexagonal flange type self drilling screw for crest and valley fixing
Specification:
➤ Material: SAE 1022, 15B25
➤ Diameter: M4–M6
➤ Length: 20–65 mm
➤ Pointer tip: Point no. 3 or 4
➤ Size: 10–1620~25 and 12–1420~65, 14–14*32,65 mm
➤ Drill capacity: 1.75–5.0 mm
➤ Head style: Indented Hex flange
➤ Surface treatment: Yellow Zinc coated, Nickle plated, Ruspert/XYLAN, Zn–AL flake coated, DACROMET.
➤ Packing: Standard packing in reusable food-grade PET containers.
➤ Salt Spray Test: Dacromet as per ASTM B-117 / ISO 9227 OF 1000–1200 hrs + DIN 50018 (0.2L) 15 Cycles
➤ Standard: DIN 7504-K
➤ Surface Treated: XYLAN coated.
Available Sizes:
| Length | M4.0 | M5.5 | M6.0 |
|---|---|---|---|
| 20 | 10–16*20 | 12–14*20 | 14–16*20 |
| 25 | 10–16*25 | 12–14*25 | 14–14*25 |
| 40 | 12–14*40 | 14–14*40 | |
| 50 | 12–14*50 | 14–14*50 | |
| 55 | 12–14*55 | 14–14*55 | |
| 65 | 12–14*65 | 14–14*65 | |
| 85 | 12–14*85 |
